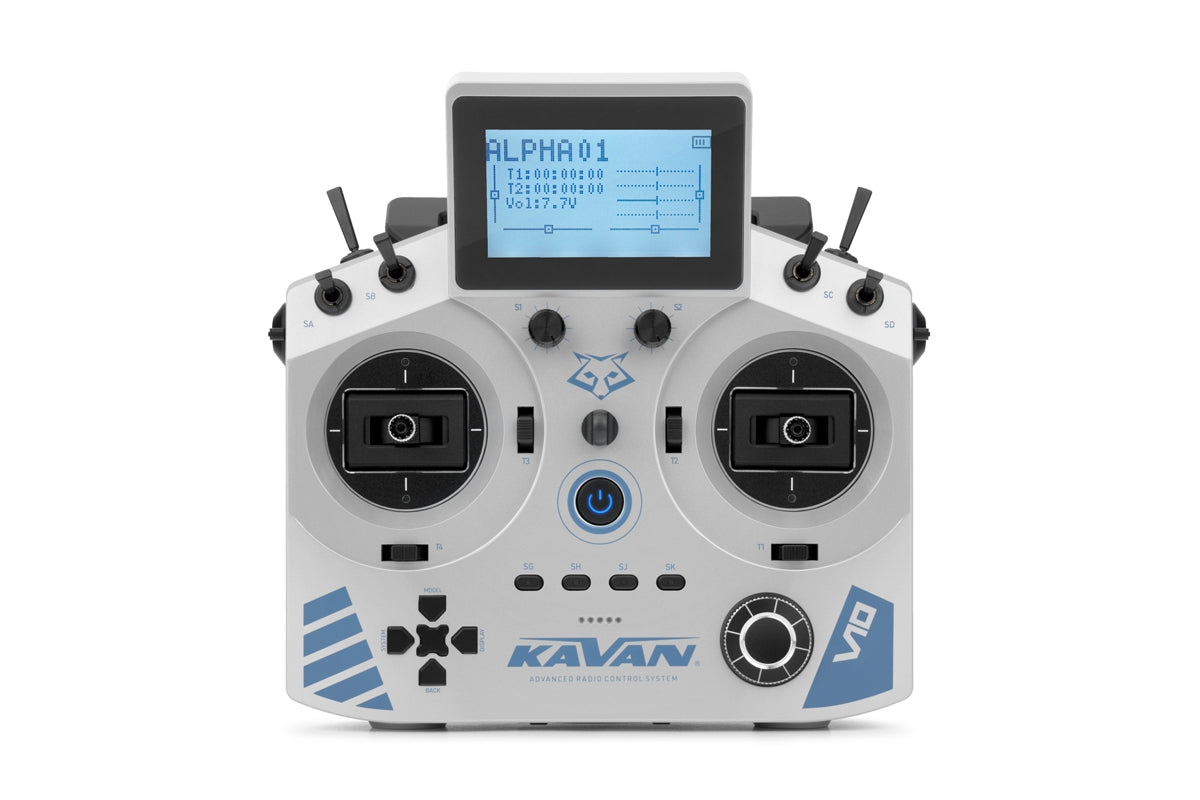

Kavan V10 Transmitter - Silver

The KAVAN V10 is an intermediate 24-channel RC set using a 2.4GHz transmission system ACCESS or ACCST with full telemetry support. It boasts a superior response time of up to 4ms and a range of up to tens of kilometres. The operating system is the all-new, lightweight and streamlined ECOS, which simplifies the operation, settings and learning curve. V10 can be paired with a wide range of KAVAN or FrSky receivers, telemetry or not, with classic PWM and serial outputs.

The V01 is an affordable radio with advanced functions, that is suitable as a first full-fledged transmitter for controlling a wide variety of aeroplanes as well as heli/multicopters. It can also be easily configured for boats or land models. This is enabled by a range of functions and mixes available in the ECOS operating system.

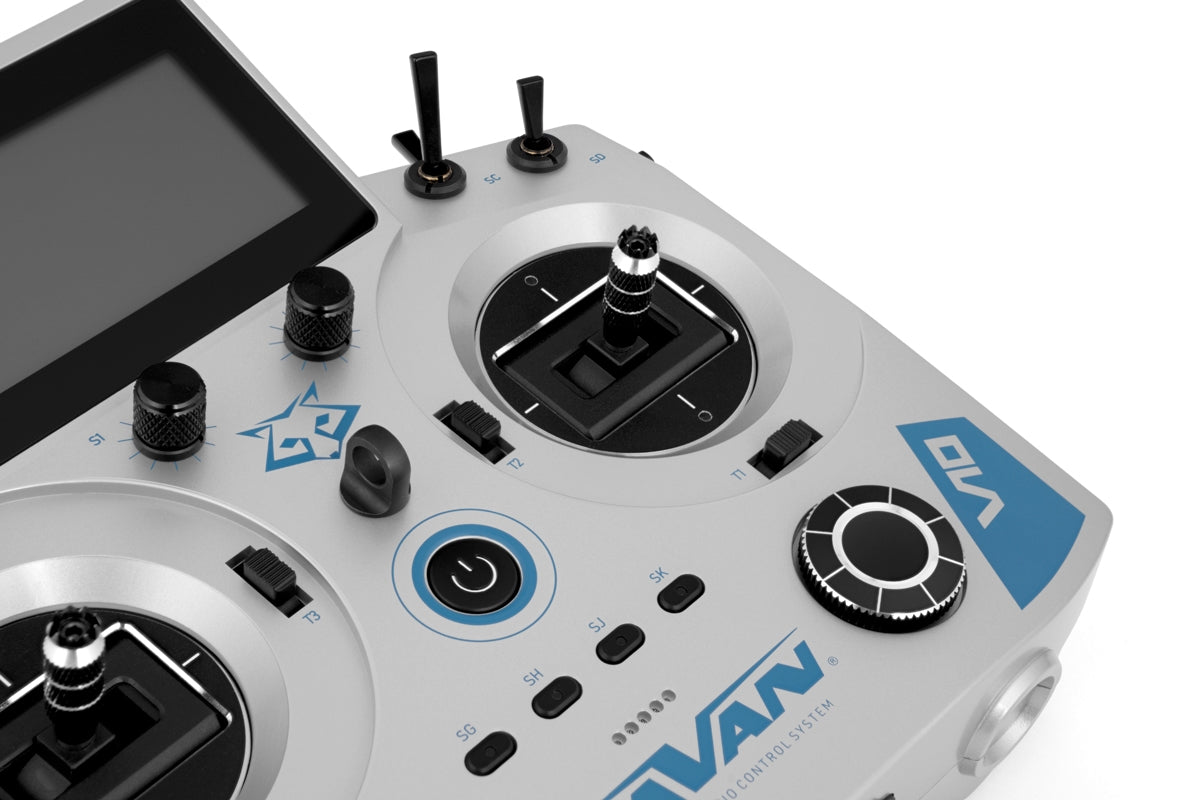

For control, it is equipped with a pair of precise gimbals measured with Hall sensors. Additional functions are controlled via 4 three-position switches, 2 two-position switches (1 momentary), 2 rotary knobs, 2 rear momentary buttons, 1 multifunctional rotary knob, 4 programmable buttons, 5 navigation buttons and 4 digital trims. The layout of the controls and the body ergonomics are based on the proven and extensively tested design of the V15 transmitter.

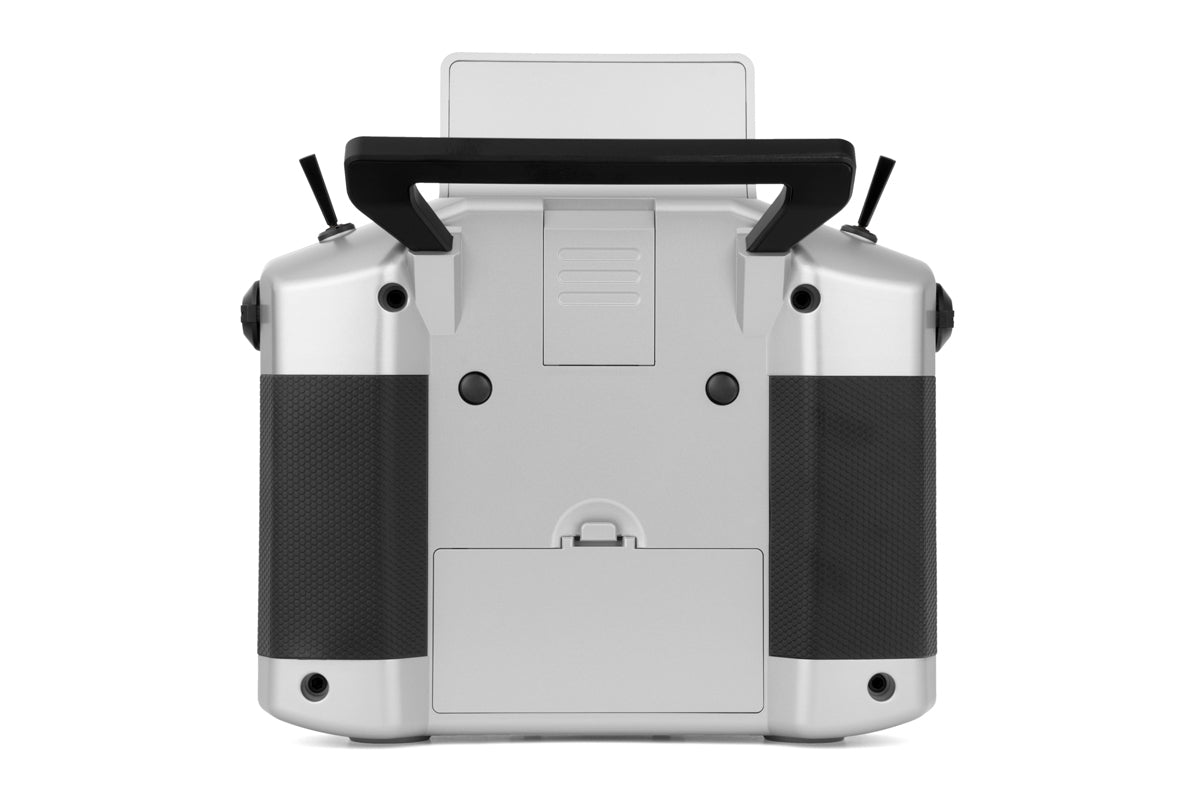

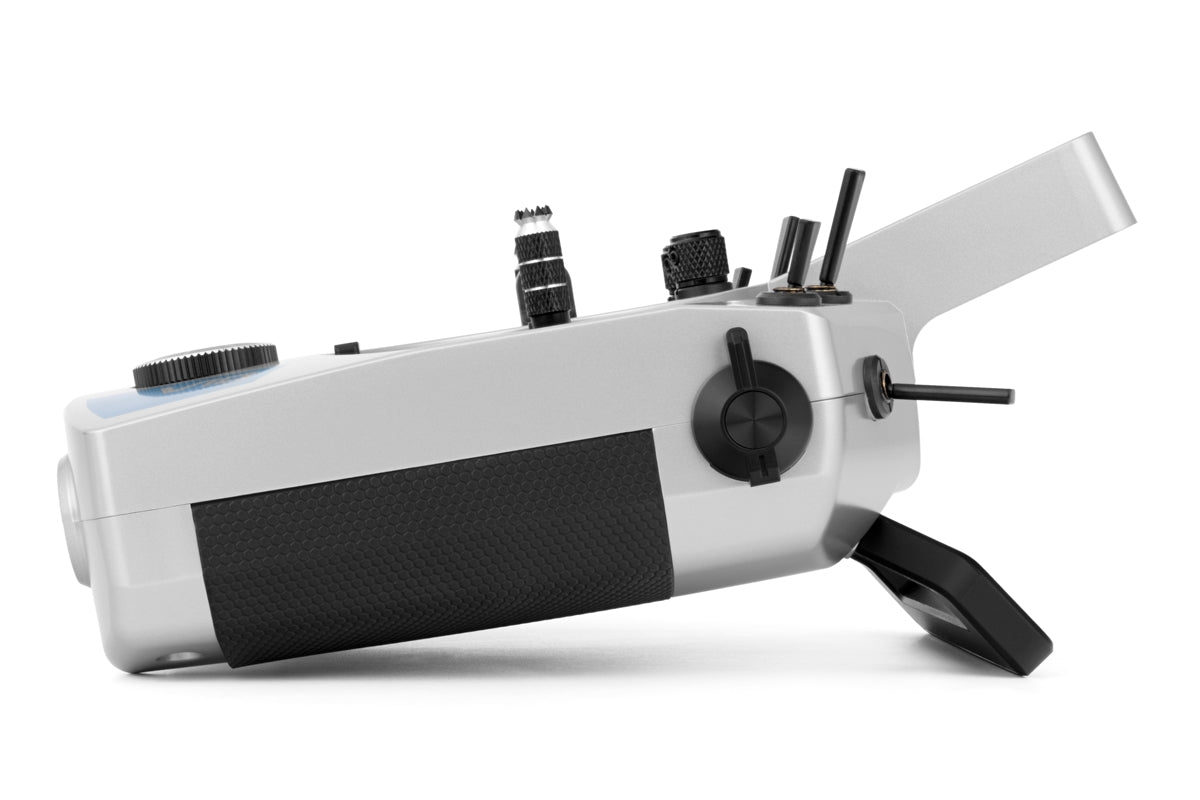

The transmitter body is robust and fits perfectly in the hand. Textured grips on the sides and rear of the body provide a firm, comfortable, and secure hold, with all controls within easy reach. Of course, the strength of the centring springs and ratcheting can be adjusted to fine-tune the mode and response according to personal preferences.

The built-in flash memory can store up to 32 models. A USB-C connector is used to access the memory and also serves for charging or RC simulator connection. Charging of the 2S Li-ion 2600 mAh battery is handled by a built-in balancer.

All KAVAN transmitters are covered by an extended three-year warranty.

Features

• Up to 8 flight modes for perfect control of your model in all conditions
• Full telemetry with data transfer from a wide range of sensors
• Memory for up to 32 models
• 2 short three-position switches
• 2 long three-position switches
• 2 long two-position switches(1 momentový)
• 2 momentary buttons (rear)
• 1 multifunction rotary knob
• 2 rotary knobs
• 2 rotary side sliders
• 4 digital trims
• Precision Hall-sensor gimbals with all-CNC aluminium stick caps
• Trainer mode via cable (3.5mm port)
• Model names with 7 characters
• Reversing the servo operation
• Setting end points
• Resetting data
• Fail-safe emergency rates
• Rate progression setting along exponential or 17-point curves
• Freely programmable mixes
• Logically linked switches
• Simple and intuitive user interface
• Servo monitor
• 2 timers (stopwatch or timer)
• Adjustable display backlight intensity
• Calibration of gimbals
• Beeper alerts
• Range check
• 3 receiver operation mode setting (Redundancy)

Technical specifications

• Transmission system: ACCESS / ACCST 2.4GHz (FW v2.0.0 and newer)
• Antenna: Built-in 2.4GHz
• Dimensions: 198.5×194×94.5 mm (W×H×D)
• Weight: 695 g (including battery)
• Operating system: ECOS
• Internal RF module: ISRM-Lite
• Channels: Up to 24
• Operating voltage: 6.5–8.4 V (2S Li-ion battery)
• Operating temperature: (-10)–60 °C
• Operating current: 100 mA at 7.4 V
• Operating frequency: 2.4015–2.4820 GHz
• Battery compartment dimensions: 69.5×38.5×20 mm (W×H×D)
• RF output power: ≤15 dBm (E.I.R.P.)
• Charging current: ≤1 A ± 200 mA
• USB adapter voltage: 5 V + 0.2 V
• USB adapter current: ≥ 2.0 A
• Display: 2.95" monochrome LCD with 128×64 px resolution

Set contents:

• KAVAN V10 transmitter
• Transmitter battery 2S Li-ion 2600 mAh
