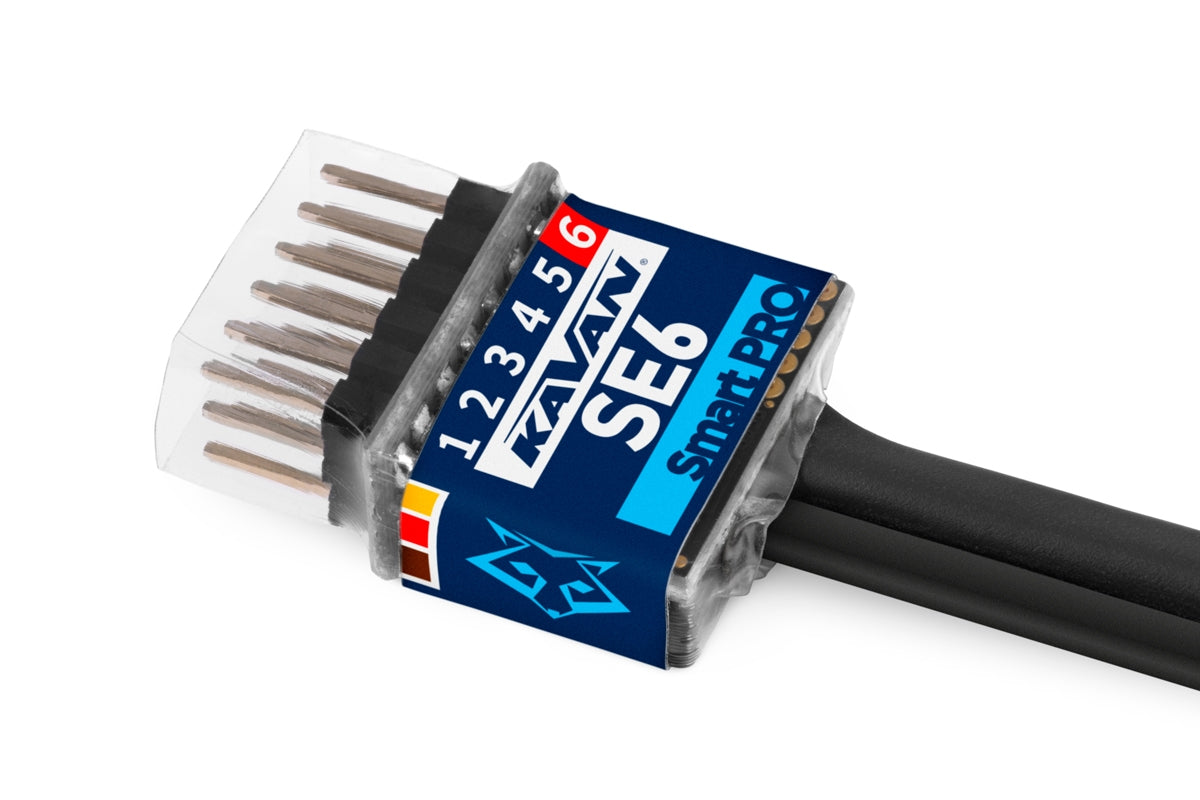

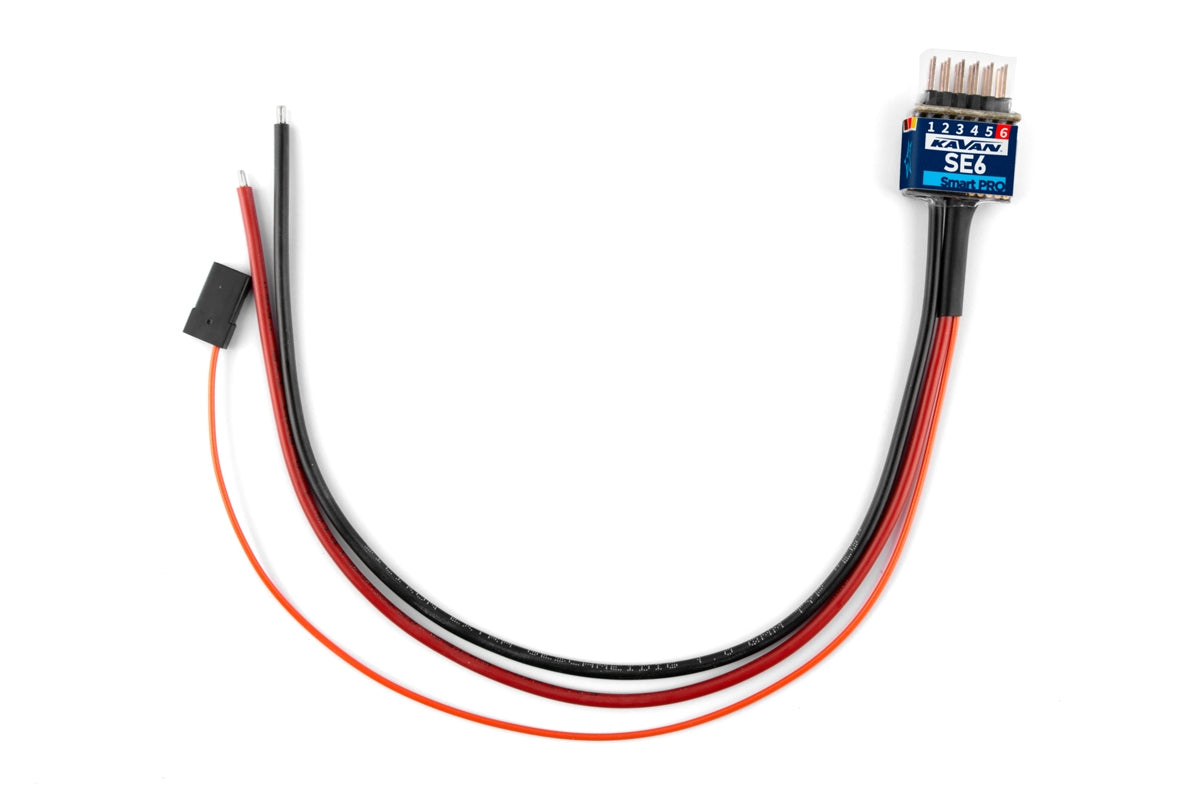

Kavan Smart PRO SE6 6ch BUS servo decoder

The Servo Expander SE6 is a device that converts serial bus signals to standard PWM servo outputs. It offers up to six configurable servo outputs with optional period and fail-safe settings. The SE6 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable. The SE6 doesn't have an input connector.

Supported protocols:

• FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus

Features

• Small dimensions and high current throughput via the integrated MR30 power connector.
• 6-channel servo/EX Bus sensor expander.
• Automatic detection of serial data/telemetry after startup.
• Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.
• Firmware updates via USB interface.

The set contents: SE6 Servo decoder/expander, instruction manual.

KAVAN Smart PRO SE6 6ch BUS servo decoder is manufactured in Czechia by the company MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
