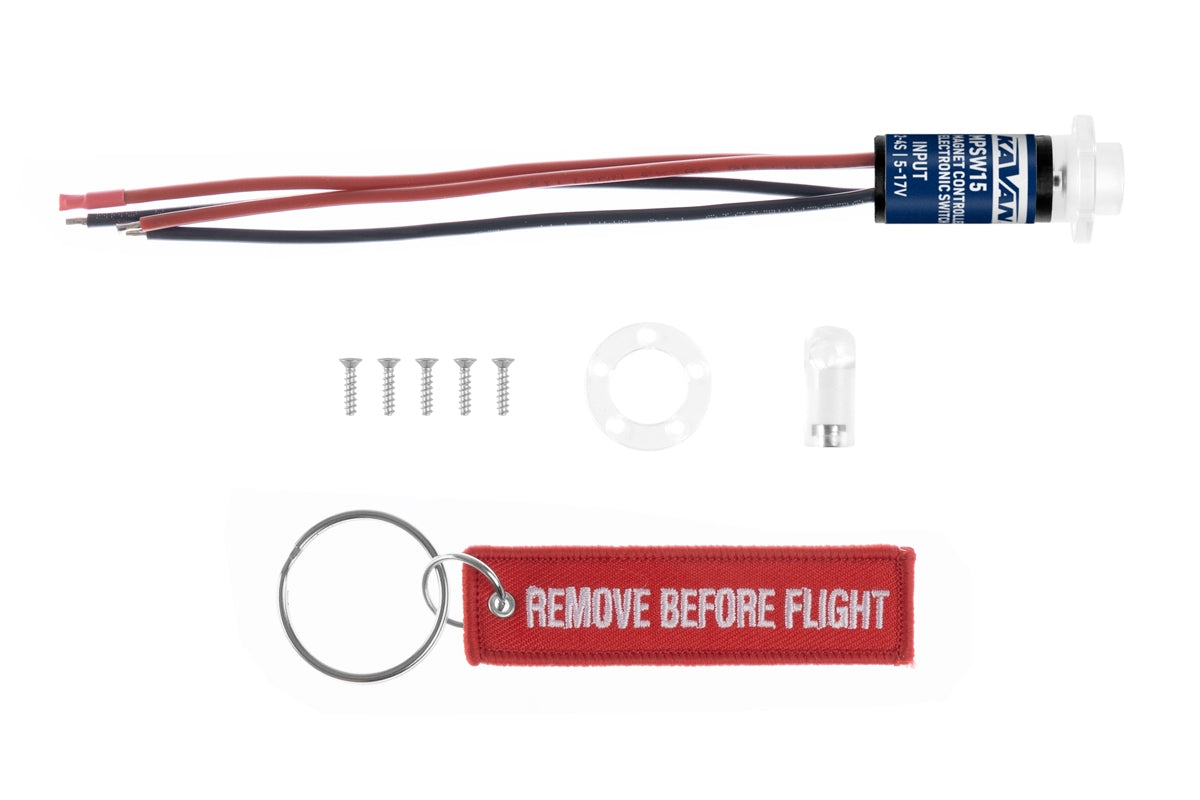

Kavan Smart PRO MPSW15 Magnetic switch

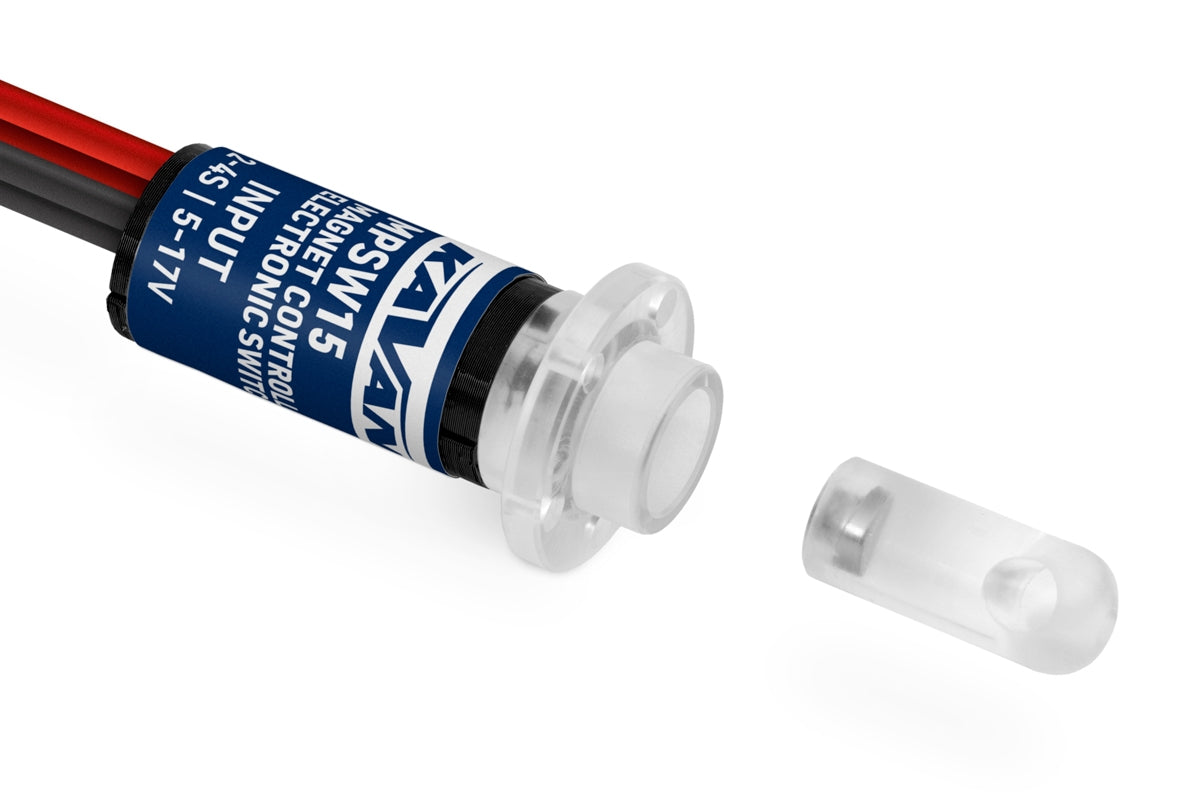

High-performance digital switch of the "Remove before flight" type. It operates using magnetic activation. Inserting the supplied magnetic activation pin into the slot disconnects the power (opens the circuit). Removing the pin switches the device on and activates the connected circuit. Illuminated LED indicators indicate the power-on state.

This system offers a safe and reliable solution for switching receivers, ignition systems, and other onboard electronics without the need for electrical contact. The switch provides reliable and secure control via a magnet and supports various types of loads, including inductive. It is contactless, so it has no wear due to switching cycles or current flow.

Features:

• Operating state LED indicator
• Reliable and secure control via a magnet
• No wear and tear
• Fast and easy to use

Technical specifications:

• Dimensions: (Ø22,5/Ø15)×42 mm
• Weight (incl. cables): 16 g
• Cables: 4×1 mm² (17AWG)
• Connectors: –
• Continuous current: 15 A
• Peak current (2s): 25 A
• Current when off: < 3 µA
• Operating temperature: (-20)-85 °C
• Switching voltage range: 5–17 V
• Status LED: Yes

KAVAN Smart PRO MPSW15 Magnetic switch is made in Czechia by MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
