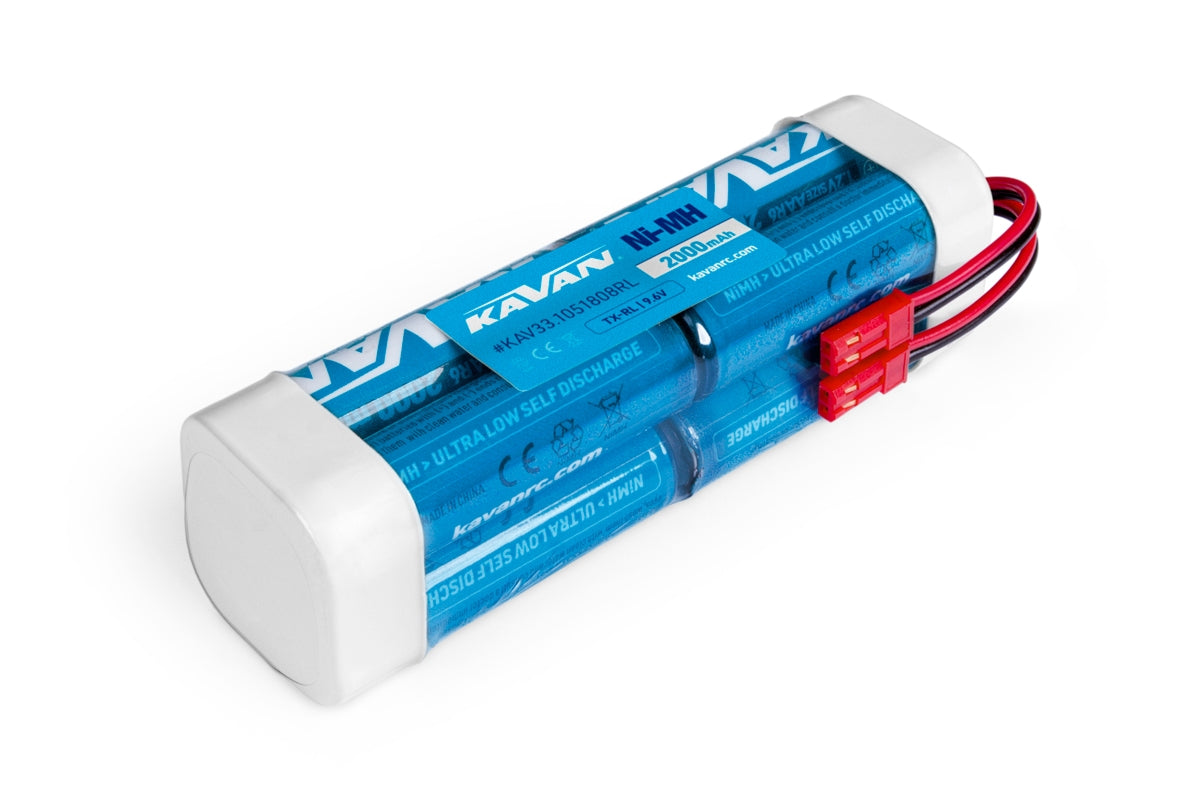

KAVAN NiMH AA 2000mAh/9.6V Tx (AT9S, AT10II)
KAVAN NiMH AA 2000mAh/9.6V Tx (AT9S, AT10II)
3 in stock
Couldn't load pickup availability
KAVAN 2000 mAh rechargeable NiMH batteries follow the trend of a sharp improvement in utility properties of nickel-metal hydride batteries. They provide a reliable power supply for transmitters and receivers with guaranteed extremely low self-discharge.
The process of self-discharge - residual capacity in% of supplied charge (charging 0.1 C / discharge 1C).
| 0°C | 20°C | 40°C | |
| 5 days | 98% | 95% | 82% |
| 10 days | 96% | 90% | 65% |
| 20 days | 92% | 80% | 35% |
| 30 days | 87% | 70% | 15% |
| 40 days | 82% | 66% | 5% |
| 50 days | 77% | 60% | 1% |
Note: The residual charge data is based on the charge supplied during charging.
KAVAN NiMH AA 2000mAh/9.6V Tx (AT9S, AT10II)
Low self-discharge eight-cell NiMH battery pack 4.8 V 2000 mAh “tailored" to Radiolink AT10II/AT9S transmitters. 2 cables with JST-BEC connectors alloweing charging without unplugging from the transmitter. Max. discharging current 6A, max. charging current 1A. Dimensions: 104x30x30mm. Weight: 231 g.
| Low self-discharge | Yes |
| Capacity [mAh] | 2000 |
| Voltage [V] | 9.6 |
| Charging current [mA] | 200 |
| Max. charging current [A] | 1 |
| Max. discharging current [A] | 6 |
| Length [mm] | 104 |
| Width [mm] | 30 |
| Height [mm] | 30 |
| Weight [g] | 231 |
