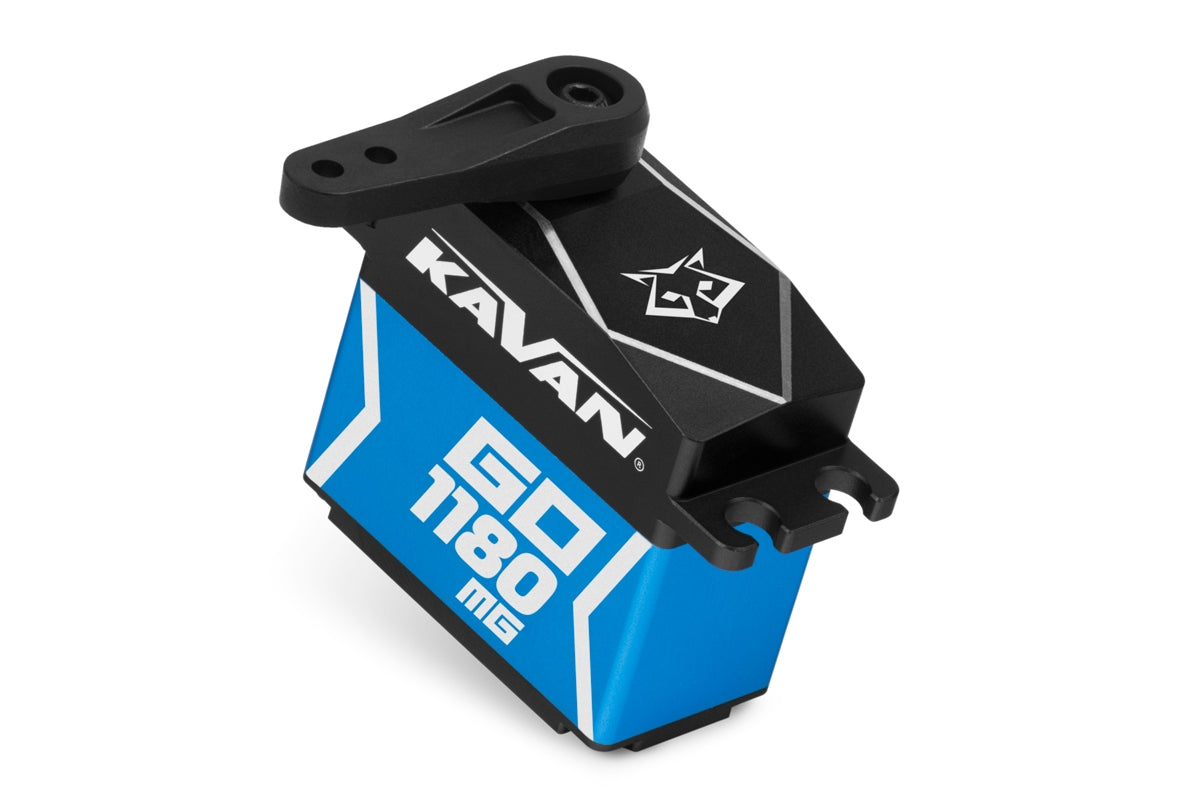

High torque/ultra high speed digital standard 79g brushless servo with titanium/hardened steel gear and triple BB-ed output shaft. Works great as a swashplate servo for 500-800 RC helicopters etc. All-aluminium case for perfect cooling under high load.
For supported Flybarless units, you can switch from 1520 to 760 µs (333 → 666 Hz) only using the GO servo USB programmer. For proper operation, it is necessary to apply the "Narrow Band" setting.Recommended settings:
Dampening factor: 26
Vbar: 500 Hz
GO-1180MG is not programmable.
Wide input voltage range 4.8–7.4 V (nominal).
25T/5.92 mm output shaft.

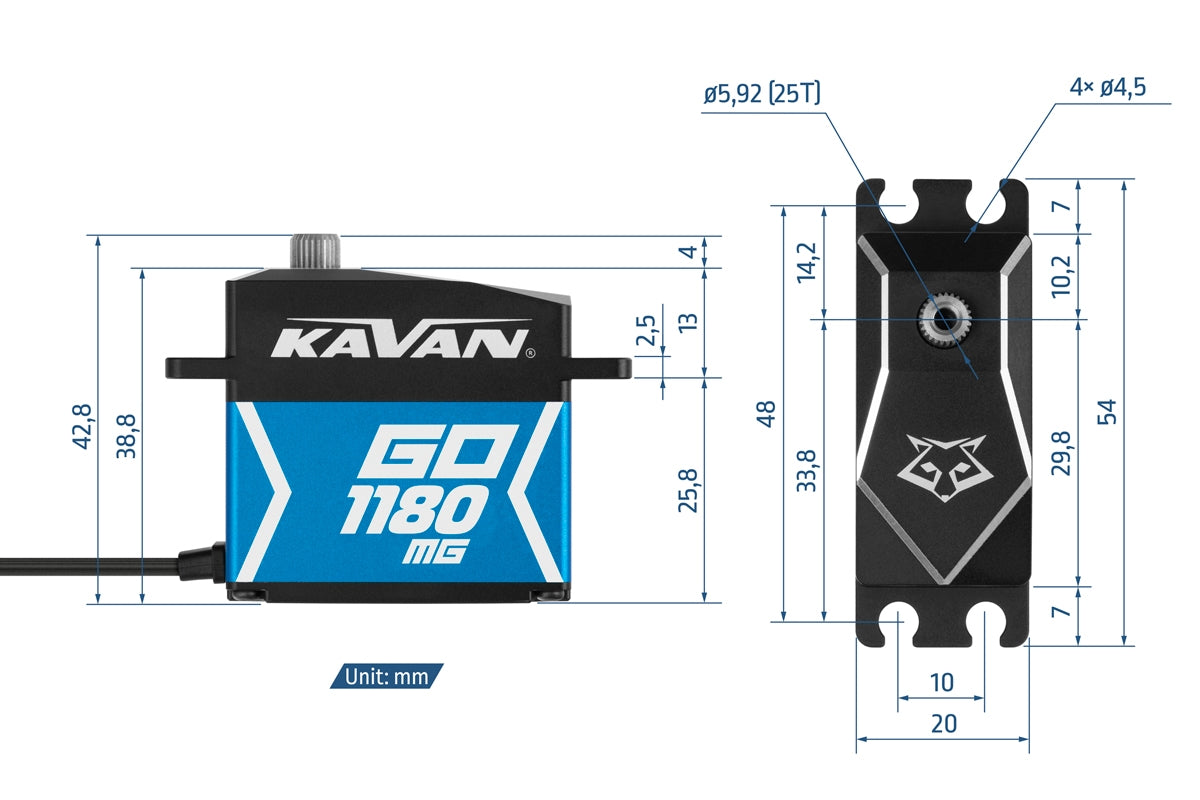

Servo dimensions
Standard
Servo type
Digital
Programmable
No
Torque at 4.8V [kg∙cm]
22
Torque at 6.0V [kg∙cm]
24
Torque at 7.4V [kg∙cm]
28
Torque at 8.4V [kg∙cm]
30
Speed at 4.8V [s/60st.]
0.06
Speed at 6.0V [s/60st.]
0.05
Speed at 7.4V [s/60st.]
0.042
Speed at 8.4V [s/60st.]
0.038
Servo gears
Metal,Titanium
Ball bearings
3×
High-voltage
Yes
Power supply [V]
4.8 - 8.4
Length [mm]
40
Width [mm]
20
Height [mm]
38.8
Weight [g]
79
Intended for
Helicopters
All GO servos are covered by an extended 3-year warranty.
